Armour in the Islamic State, the Story of 'The Workshop'
By Stijn Mitzer and Joost Oliemans
The Islamic State's rise to the status of one of the most sophisticated designated terrorist groups ever to exist has been accompanied by an unprecedented level of ingenuity, adaption and brutality on the battlefields it engages in across Syria, Iraq and abroad. Exploiting the lack of security after the withdrawal of U.S. troops from Iraq in 2011 and making smart use of the power vacuum in Syria it effectively hijacked the revolution's original goals. The Islamic State would quickly present itself as a threat like no other – not only to Syria and Iraq, but to the entire world.
At the forefront of the Islamic State's sudden metamorphosis from a militant group in Iraq to a self-proclaimed caliphate controlling large swaths of land in Iraq, Syria and across the globe is its ability to quickly adapt to the various situations encountered on the battlefield, its ingenuity in coming up with appropriate adaptations and their enthusiastic execution of said adaptations. The sudden change in the scope of warfare the Islamic State's rise brought to Syria and Iraq would be a shock to those caught up in it, and could only be contained through the massive influx of manpower, weapons and perhaps above all, airpower.
This massive force aimed at the destruction of the Islamic State would be pitted against a self-proclaimed caliphate that hadn't seen an equivalent since the fall of the Islamic Emirate of Afghanistan in 2001, positing itself as a power that could engage its enemies in both guerrilla and conventional warfare. The huge amounts of weaponry captured by the Islamic State allowed it to directly challenge stronger foes on the ground which, despite the constant threat of precision-guided strikes against its assets, included the deployment of large numbers of heavy weaponry during operations in both Syria and Iraq.
The use of armoured fighting vehicles in these operations is no exception, with the Islamic State having captured and operated more than 200 tanks and around 70 BMPs in Syria alone, making it the second-largest operator of armour behind government forces. While practically all of the many rebel factions wrestling for control over Syria have operated armoured fighting vehicles (AFVs) at some point during their existence, only the Islamic State would deploy armour on such a large and organised scale, even surpassing the militaries of many established nations states in amount and quality of its equipment as well as tactics employed.
In an effort to provide technical support for this fleet of AFVs, several Wilayats (governorates) throughout the Islamic State established armour workshops for repairing and modify ing vehicles for future use on the battlefield. While every governorate has workshops tasked with producing up-armoured vehicle-borne improvised explosive devices (VBIEDs), only a handful of Wilayats have a meaningful industry capable of repairing and modifying armoured fighting vehicles. In Syria, two major workshops would be established,:'The Workshop' located in Wilayat al-Raqqa (Raqqa) and another (Armour in the Islamic State, the DIY works of Wilayat al-Khayr) in Wilayat al-Khayr (Deir ez-Zor). This article will cover the works of the 'Workshop of the Tracked' in Wilayat al-Raqqa, better known as 'The Workshop'.
While the Islamic State is well known for operating all kinds of contraptions for use on the battlefields in Iraq in Syria, ranging from earthmovers modified for the role of vehicle-borne improvised explosive devices (VBIEDs) to simple up-armoured civilian vehicles crude in appearance, the attention some of these monstrous contraptions have received has given the Islamic State the reputation of solely operating such vehicles and being incapable of utilising more conventional weaponry.
Not only is this stereotype incorrect, the often heard arguments doubting the effectiveness of Islamic State's armour in the face of precision-guided airstrikes are also greatly exaggerated. Despite intensive efforts by the Coalition and to some degree the Russian Air Force at degrading the Islamic State's heavy weaponry throughout Syria and Iraq, the Islamic State was freely able to operate AFVs on most Syrian fronts it has been fighting on since the commencement of Coalition airstrikes in late September 2014, with only little risk of being targeted. Large numbers of these armoured fighting vehicles were in fact products of 'The Workshop'.
'The Workshop' is the second-largest armour repair workshop to have existed in Syria, but in terms of activity could very well have been the single most active in the country. Since its inception in the summer of 2014, 'The Workshop' is believed to have overhauled and upgraded over 150 armoured fighting vehicles before its demise three years later in June 2017. This number accounts for more than half of the Islamic State's inventory of tanks and BMPs it operated since 2014, a testimony to the scale of the Islamic State's efforts aimed at overhauling and upgrading AFVs for future use on the battlefield.
The facility would perform a wide variety of overhauls and upgrades on nearly all types of armoured fighting vehicles in use with the Islamic State, ranging everything from installing multi-spectral camouflage on tanks to the up-armouring of AFVs and even constructing modular turrets for installation on four-wheel drive vehicles such as the Toyota Land Cruiser. While located in Wilayat al-Raqqa, its products would show up throughout the whole of the Islamic State, including Wilayats in Iraq. Indeed, several ex-Syrian T-55s overhauled at 'The Workshop' could be seen in action during the Islamic State defence of Mosul, and would later be captured by Iraqi forces.
In addition to providing an overview of the projects undertaken by 'The Workshop' since its inception in 2014, this article will also follow the life of some of the Islamic State fighters who operated the upgraded armoured fighting vehicles in combat throughout Syria. The photos showing the fighters' daily life in Syria present an interesting look into the surreal life of an Islamic State fighter, which includes everything from spending time with friends and family to taking detailed photographs of bodies after mass executions and beheadings.
The wealth of personal images taken by these Islamic State fighters would also allow the author to pinpoint the exact location of 'The Workshop', both a testimony to open source intelligence (OSINT) and operations security (OPSEC), the latter of which clearly ignored by the Islamic State fighters working out of 'The Workshop'. This goes to show the importance of OPSEC during wartime, where one image can make the difference between being targeted or escaping detection.
Although the location of 'The Workshop' had already been discovered, the constant stream of additional information and images that allowed for an ever more comprehensive article on the facility unfortunately led to its delay for over a year. Interestingly, it appears the location of 'The Workshop' has thus far eluded most analysts, despite the fact that it received its fair share of attention over a year ago.
On the 2nd of June 2016, regime forces launched the disastrous 'To Raqqa' offensive with the aim of establishing a foothold in the Raqqa Governorate. Advancing along a narrow stretch of road, regime forces quickly reached the Safiya crossroad before heading North, eventually reaching 'The Workshop', which was likely already abandoned by the Islamic State before its capture. Despite reaching its location without any major setbacks, a sudden Islamic State counterattack quickly recaptured 'The Workshop' and reversed all gains that had been made by regime forces in the previous days, ultimately allowing it to return to normal operations.
Much to the authors' surprise, and despite the obvious presence of several tank wrecks cannibalised for spare parts in 'The Workshop' itself, it appears that even regime forces were completely unaware of the nature of the facility they had just captured. To add insult to injury, Amaq News Agency even released footage of the partial remains of two T-72M1s cannibalised for spare parts located in 'The Workshop' after the fighters of the Islamic State had recaptured the facility from regime forces.
While it appears that nobody knew the exact whereabouts of 'The Workshop', it is certain that the Coalition was already aware of the facility as of the 30th of August 2016, when an airstrike targeted a BMP-1 that was in the process of being converted to a VBIED in the largest structure of the facility, resulting not only in the destruction of the BMP-1, but also of the whole building. Satellite imagery obtained from Terraserver already reveals heavy damage to two other structures on the 24th of August 2016, but it remains unknown if this was the result of the fighting between the Islamic State and regime forces here in June or another Coalition airstrike.
Despite the fact that the Coalition struck 'The Workshop' on the 30th of August 2016, it remains unknown if they were ever fully aware of the exact nature of the facility, possibly only striking the BMP because it was discovered by accident. While one could argue that Coalition intelligence should have been able to identify this facility early on with the amount of resources it possesses, the fact that more than 150 armoured fighting vehicles could be overhauled and upgraded here seems to directly contradict this possibility. While regime forces not only captured the facility, but would also be presented with large numbers of photographs taken inside 'The Workshop', it is likely that the sheer inefficiency of the Syrian military apparatus prevented any action to be taken against it.
What is certain however is that 'The Workshop' was able to carry out its work unhindered by airstrikes for over two years. Indeed, despite having been captured by regime forces and being struck by the Coalition in a timespan of just several months, work is believed to have continued at an even faster pace than before. Due to the simplification of several of its designs, the past year would allow 'The Workshop' to overhaul and upgrade the largest number of tanks since its inception in 2014. The delegation of at least a part of the work to newly set-up armour repair workshops in Wilayat al-Raqqa can't be excluded however.
Although the location of 'The Workshop' might seem randomly chosen, it is highly likely that the Thawrah Industrial Facility and Workers' Housing was chosen for the strategical location it occupies. Situated just South-West of of Raqqa, it was located at a seemingly deserted spot in the desert, one that would not attract much attention from the Coalition's aerial assets. Its central location and close proximity to Raqqa was also ideal for sending armoured fighting vehicles to the various fronts the Islamic State was fighting on without having to risk detection by driving through Raqqa.
While a lack of airstrikes against 'The Workshop' allowed the Islamic State to continue using large amounts of armoured fighting vehicles on the front, it is important to note that although airstrikes would surely have crippled the 'The Workshop' for a short period of time, it could have easily moved elsewhere shortly afterwards. It is certain however that intensive aerial reconnaissance around Tabqa could not only have prevented 'The Workshop' from delivering overhauled vehicles to its operators, but also from receiving AFVs to overhaul and upgrade in the first place.
It was initially believed the quick advances made by the Syrian Democratic Forces (SDF) around Tabqa would ultimately result in the capture of the 'The Workshop'. Surprisingly, the SDF halted their advance just a few kilometers away from the facility. As quiet as 'The Workshop' came into being and remained during its operations, the now abandoned facility would eventually be recaptured by government forces in early June 2017, just short of three years after its initial inception. Almost completely unreported during its three years of service, 'The Workshop' was to remain wholly uncovered by the media despite its significant impact on the course of the Syrian War.
The story of the actual tanks overhauled and upgraded by 'The Workshop' begins on the 26th of January 2014, when a convoy of vehicles belonging to what was then still named the Islamic State of Iraq and al-Sham (ISIS) made its way through Northern Aleppo. Although featuring little in terms of heavy armour, the T-72AV leading the convoy would later provide the first hint that the Islamic State had begun performing upgrades on its tanks and other armoured fighting vehicles.
More interestingly, it gave us a first look at an Islamic State unit that would participate in nearly every major Islamic State offensive throughout 2014. It is believed that experience gained with this particular unit would later lead to the establishment of several other such units, which will be referred to as سرية المهام الخاصة - 'Platoon of Special Tasks' in this article. Sometimes (incorrectly) referred to as جيش الخلافة - Jaish al-Khilafa (The Caliphate Army), the Platoons of Special Tasks would be responsible for nearly every major Islamic State offensive conducted in Syria since 2014.

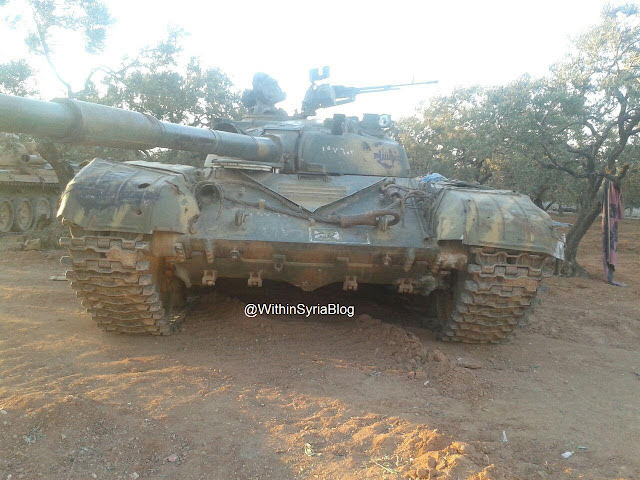

Back to the T-72AV, which would resurface around seven months later, on the 9th of July 2014 to be precise, 'guarding' a meeting between the Islamic State and tribal elders in a bid to get support of the latter in this region. This show of strength further emphasised the abysmal state of the T-72AV's explosive reactive armour, parts of which were dangling loosely from the tank's body. The text bar reads: ولاية حلب: جانب من الأسلحة الثقيلة والآليات العسكرية التي كانت تحمي الملتقى العشائري - ''Wilayat Halab: Some of the heavy weaponry and military vehicles that were deployed to guard the tribal meeting.''
The grain silos also served as the main rally point from where Islamic State forces made their way to Ayn Issa in a bid to capture Brigade 93 in early August 2014, which also included the T-72AV. This offensive would eventually result in the capture of the base on the 7th of August. Of interest is the damage that occurred to the row of of explosive reactive armour bricks installed on the lower glacis plate, which must have occured as the tank was transported from 'The Workshop' to the grain silos.
The by now all too familiar T-72AV being loaded onto its trailer. Interestingly, the normal dense arrangement of Kontakt-1 explosive reactive armour (ERA) on the side skirts was switched for a more evenly distributed array of ERA. The placement of Kontakt-1 on the rear mudguards is notable, as it serves little to no purpose in terms of increased protection and could instead have been placed on real weak spots, of which the T-72 knows all too many.
The tracking of the aforementioned T-72AV presented itself as a rare occasion in a conflict that has seen the participation and destruction of thousands of armoured fighting vehicles, and could not have been possible to this extent without the photographs taken by Abu Hamza al-Khalidi. The digital footprints of this member of the 'Tank Battalion' would not only aid the author in identifying the location of 'The Workshop', but would also prove vital in the identification of other members of 'Tank Battalion', the armoured fighting vehicles used by its fighters and their operations throughout Syria.
In addition to Abu Hamza al-Khalidi, several other members of the 'Tank Battalion' and technicians of 'The Workshop' could also be identified thanks to their presence on social media. While Twitter had already declared war on designated terrorist groups in 2014, banning the accounts of Islamic State fighters and its supporters, large numbers of Islamic State fighters continue to maintain accounts on various other social media platforms, most notably Facebook.
The author made several attempts to get in contact with several of these individuals by posing as a member of a different unit from the 'Tank Battalion' for the gathering of information and photographs of their operations and daily life in Syria, leading to the removal of the account by Facebook on several occasions. Ironically, many of the accounts of the Islamic State fighters in question remain present on Facebook to this day. Although it is extremely likely that foreign fighters played a vital role in running 'The Workshop', their presence here could not be verified.
Many of the Islamic State tankers active on Facebook are not only friends with each other, but also with fighters of various other factions fighting for control over Syria. Indeed, most appear to have bonded by their shared passion for armoured fighting vehicles, choosing to ignore whatever religious beliefs and other differences may divide them. Posing with their tanks, photographing them from different angles and even becoming members of tank enthusiast groups on Facebook, their presence on social media certainly provides for an interesting insight into the life of Islamic State fighters one doesn't get to see often.
The Islamic State's frequent media releases allowed the tracing of several of these armoured fighting vehicles as the Islamic State captured ever more territory from rebel groups and regime forces in Northern Syria. An example is this T-72 'Ural' of the 'Tank Battalion' deployed to Kweres airbase in a bid to dislodge regime forces defending the airbase. More interestingly, Abu Hamza would also appear in a photo report along with his T-72 'Ural' in the town of Akhtarin, captured by the Islamic State on the 14th of August 2014.
Before being photographed in Akhtarin, Abu Hamza is known to have participated in the assault on Brigade 93, where he took several photographs of massacred and dismembered defenders afterwards. The bodies shown in his photographs could be compared to those seen in official Islamic State images released after the conquer of Brigade 93, and quickly provided a match. His actions on the battlefield in the months that followed remain unknown however, and he would only reappear in May 2015 after the first capture of Tadmur (Palmyra) while inspecting the huge ammunition depots located North of city.
While a large number of photographs were dedicated to his interest in military affairs, other images would show Abu Hamza's personal life with his three children, family, friends and other Islamic State fighters, most of whom believed to have been members of the 'Tank Battalion'. Although still at a young age himself, Abu Hamza was already a father of three. When not at the front or 'The Workshop', Abu Hamza spent most of his time in the city of Raqqa, often hanging out with other members of the 'Tank Battalion'.
This group of friends would regularly be photographed during their stay in Raqqa, often enjoying time near the Euphrates river or simply enjoying meals in between their time away from the front. The image below was taken near the now destroyed 'New Raqqa Bridge', the exact same location where VICE News filmed a part of their documentary on the Islamic State, which was filmed roughly at the same time. The faces of three individuals are blurred so as not to compromise ongoing research.
This outright strange contrasting blend of photos of armoured fighting vehicles, decapitated human remains and of precious moments spent with his newborns would continue until Abu Hamza's death on the 10th of August 2015, when he was believed to have been killed along with Abu Omar after fleeing his T-72 'Ural' in a failed attack on Kweres airbase. Unfortunately for the research on this article, most individuals involved with 'The Workshop' have been killed in combat over the past years.
Before going into detail on the actual upgrades performed by 'The Workshop', it is insightful to understand what is currently known about the structure of Islamic State units that used armoured fighting vehicles throughout Syria. As previously mentioned, many of the Islamic State's tanks were organised into the 'Tank Battalion', which is believed to have been further divided into several units, each with different bases. While it was an independent unit in theory, the 'Tank Battalion' would never go out on its own, with its AFVs instead attached to so-called 'Platoons of Special Tasks' during offensives across Syria.
While analysts are still a long way from unravelling the Islamic State's operational structure in Syria and Iraq, it is now commonly accepted that there is a special type of unit tasked with launching offensives across Syra. Sometimes (likely incorrectly) known as 'The Caliphate Army' (Jaish al-Khilafa), these units (known as 'The 'Platoons of Special Tasks' in this article) were the forces responsible for every major Islamic State offensive since 2014, and would make heavy use of armour during its operations.
While the foundation for the 'Platoons of Special Tasks' is already believed to have been laid down in early 2014 during the Islamic State's increased presence in Syria, the large influx of foreign fighters in 2014 and 2015 would enable the Islamic State to set up more specialised units to expand the Caliphate across its current boundaries. Instead of directly deploying its new recruits on the frontline, large numbers were held back in Raqqa for enlistment in the 'Platoon of Special Tasks'. These Platoons are believed to have been more motivated and better trained than regular Islamic State units, likely a result of the fact that a significant portion of its fighters travelled to Syria specifically to join the Islamic State.
In its normal configuration, a 'Platoon of Special Tasks' would consist of Raqqa-based fighters with several technicals as support, and attachments from the 'Tank Battalion' and artillery units depending on the type of operation. After carrying out their objectives, these units would return to their individual bases awaiting their next mission. This meant that no unit was ever the same, and could consist of several individual components during each operation.
The bases of these units were believed to be mostly located in the region surrounding Tabqa, where Raqqa-based fighters would collect their vehicles before heading out to their objective. This way no heavy weaponry had to be transported through Raqqa, minimising the risk of detection by the Coalition. A typical makeup of a 'Platoon of Special Tasks' can be seen in the image below. The text bar reads: استعداد المجاهدين لغزو مواقع الجيش النصيري شرق مدينة دار الفتح - ''Mujahideens preparing to storm positions of the Nusayri [Derogatory: Alawite] army east of the town of Dar al-Fateh.''
In addition to the 'Tank Battalion', at least three other units are known to operate armoured fighting vehicles in Syria, comprising the فرقة عثمان بن عفان - Othman bin Affan Division, the فرقة أبي عبيدة بن الجراح - Abi Obaida bin al-Jarrah Division and the فرقة الزبير بن العوام - Zubayr ibn al-Awam Division. All three divisions are named after companions of Prophet Muhammad, and served important roles during the times of the Rashidun Caliphate.
Abu Hamza's unit was initially stationed at 'The Workshop', where its tanks were well hidden in the nearby orchard. However, as the Coalition launched its aerial campaign over Syria and Iraq, the time the tanks spent outside was greatly reduced to minimise chances of detection by aerial assets. This is not believed to have provided any major problem as the many buildings of the facility provided enough shelter for the tanks. The T-72AV 'hidden' in the orchard below is believed to have been one of the tanks that arrived with Liwaa' Dawud and was previously featured in their videos.
Interestingly, one of the T-72 'Urals' in Abu Hamza's unit donned markings of Jaish al-Islam, best known for controlling a large portion of Eastern Ghouta but which previously also had a strong presence in Northern Syria. It is thus likely that this example was either captured from Jaish al-Islam as the Islamic State took over the former's territory or alternatively, that the tank came from Liwaa' Dawud which never bothered to remove the markings themselves.
Five tanks await their turn for being overhauled and upgraded by 'The Workshop'. The parking space of the facility provided a somewhat safe hiding place for aerial reconnaissance and was left untouched by Coalition airstrikes over the years. It is however likely that after the commencement of Coalition airstrikes the tanks at the facility were more evenly spread, avoiding the destruction of several AFVs by just one airstrike. The T-72 at the rear appears to have sustained serious combat damage, and would likely end up used as a source of spare parts.
Although the largest building of the facility could house several armoured fighting vehicles at the same time, other smaller buildings were also used as workplaces and for storage. The targeting of the largest building on the 30th of August 2016 necessitated moving the whole production line to the smaller buildings, which usually housed just one tank at a time. Some buildings were in fact so small that a larger entrance had to be cut out in order for the tank to drive into the building.
In addition to housing 'The Workshop' and a 'Tank Battalion', the Thawrah Industrial Facility and Workers' Housing was also used as an ammunition depot not only for the 'Tank Battalion', but also for the armoured fighting vehicles that were overhauled and upgraded here. After completion of work, these AFVs were loaded with the right ammunition before being sent to their new operators, some of which also believed to have been trained at 'The Workshop'. This further emphasises just how large the scale of the works of 'The Workshop' actually was.
A look at some of the tank ammunition present at Thawrah, which includes nearly every type of shell present in Syria. Of interest is the 3UBK10M-1 tank gun round with the associated 9M117M guided missile, together with the guidance device aboard the T-55AM(V) tank known as 9K116-1 Bastion. Only rarely used during the Syrian Civil War, this round was misidentied as an illuminating round by the Islamic State.

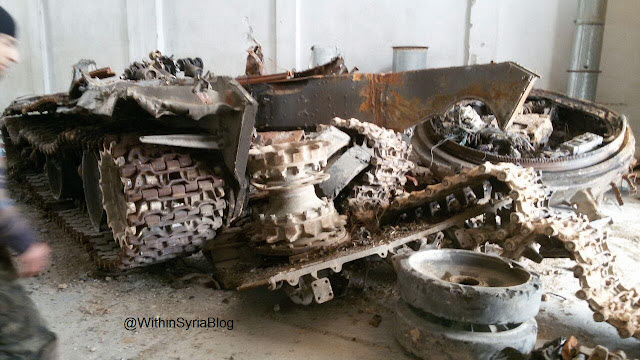

The remains of a battle-damaged T-72AV taken to 'The Workshop' and subsequently completely wrecked for spare parts. As many of these armoured fighting vehicles could be cannibalised for various spare parts, sights or even the cannon for installation on other tanks, transporting damaged or sometimes destroyed tanks became common practise for 'The Workshop'. This also explains the aforementioned presence of the two T-72 turrets filmed by the Islamic State as it recaptured the facility in June 2016.
Another example of recycling is this T-62 Model 1972, which had been destroyed near the Thawrah Industrial Facility by the Free Syrian Army back in 2013. This tank would be sighted again during the first capture of the facility by regime forces in June 2016 and encountered for a second time during the second capture of 'The Workshop'. Both sightings revealed the absence of its lamps, infrared searchlight and the TSh-2B-41 gunner sight.
The transportation of Islamic State tanks throughout Syria and Iraq always occurred via heavy-duty trucks, one of which ('603') can be seen below with a T-72 'Ural' on its trailer captured after a succesful raid in Wilayat Hama. As regime forces are notorious for leaving equipment, vehicles or sometimes even complete warehouses full of ammunition behind, the Islamic State made frequent use of heavy-duty transports to haul ghaneema (spoils of war) back to its heartland. These trucks, being largely indistinguishable from civilian trucks apart from their deadly load, have rarely been targeted, the example below which carried a T-62 model being an exception.
This is also the reason the USAF frequently targets weaponry captured by the Islamic State: to prevent its fighters from having a chance to move the 'ghaneema' away from the frontline, which in Tadmur also included seven tanks taken over by the Islamic State and subsequently stored in the airbase's Hardened Aircraft Shelters. Inaction by the SyAAF and Russian Air Force would have resulted in them swiftly being hauled off on heavy-duty trucks, a crucial mistake which lays bare some of the glaring shortcomings that plague these air forces in the Syrian Civil War. Ultimately, they would have made their way to 'The Workshop' for overhauling, upgrading and further distribution elsewhere in Syria.

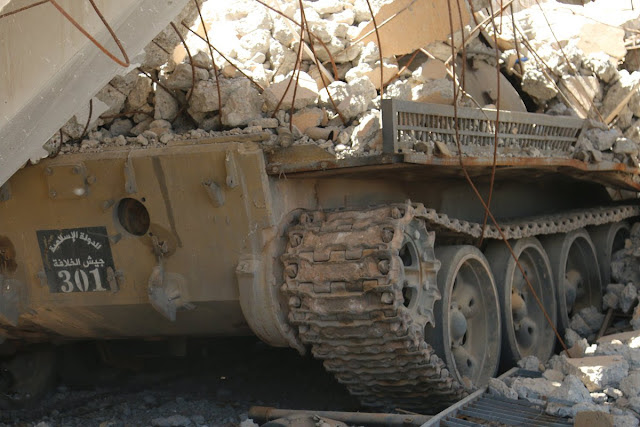

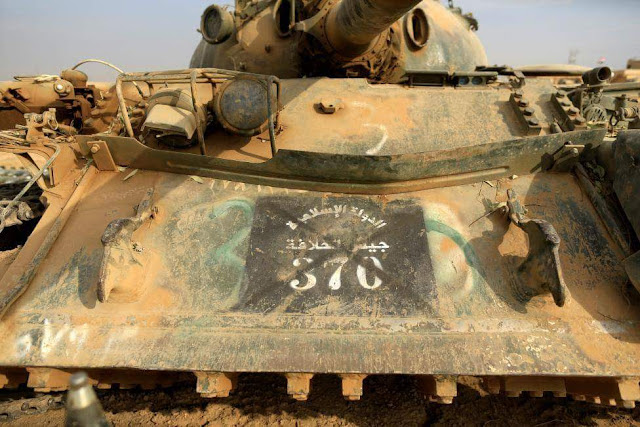

These markings initially led to some to conclude that the black square was exclusive to 'The Caliphate Army', a so-called Islamic State elite unit mostly consisting of battle-hardened foreign fighters (known as 'The Platoon of Special Tasks' in this article). Although the Islamic State does apply unit markings on some its vehicles mostly in Iraq but also in Syria, it is extremely likely that the black square represented nothing more than a plaquette indicating this tank had been overhauled by 'The Workshop'. 'The Caliphate Army' in turn likely refers to the whole of the Islamic State's military structure.
More interestingly, the markings would allow counting and tracking the armoured fighting vehicles upgraded by the 'The Workshop'. Below is a list of known serials applied to various types of armoured fighting vehicles. Notable is the presence of only three T-72s in this list, most of which never received the black square for reasons that remain as of yet unknown. Although never actually detected among vehicles, the 5xx series was likely used for the BRDM-2, at least one of which was overhauled by 'The Workshop'.
BMP-1: 202, 206, 208, 211, 212, 213, 215, 218, 219, 222, 225, 227, 229, 230, 231, 232, 233, 235
T-55: 301, 302, 309, 310, 314, 319, 324, 325, 331, 334, 352, 370, 363, 366, 370, 372
T-62: 333, 335, 336, 34?, 3?2, 344, 347, 348, 352, 353
T-72: 311, 329, 334
ZSU-23: 400
BTR-50: 601
While the numbering system looks pretty straightforward, with each vehicle category receiving its own first digit, its application was complicated by several factors. Foremost, no distinction between AFV and VBIED was made, meaning that a vehicle type's serial number is exclusive to the chassis of the vehicle. That is until the first sighting of Toyota Land Cruisers with a BMP-1 turret, which also received 2xx serials of the BMP-1. It also remains unknown if overhauled and upgraded AFVs without the black square were given their own serial number or were not included in the designation system.
Although initially applied on most vehicles overhauled by 'The Workshop', these markings sometimes became invisible after the fitting of additional armour and appears to have been completely abandoned on later iterations of upgrades of main battle tanks. Other vehicles continued to wear the black square throughout their career in Syria, sometimes worn out and barely visible as on the ZSU-23 below.
A perfect example of this is T-72 'Ural' '311', which was overhauled and upgraded by 'The Workshop' no less than three times during its career. This tank was the personal mount of Abu Hamza, which would regularly photograph and be photographed with the tank both at 'The Workshop' and in the field. The image below shows the tank during its second overhaul, with additional armour and supports for the multi-spectral camouflage already having been installed.
The armour arrangement on this tank is typical of earlier upgrade programmes by 'The Workshop', featuring slat armour on either side of the tank and around the turret, with the former having been applied directly over armour plates with only little spacing in between. The armour plates can easily be replaced after having sustained combat damage, which would be a feature of several upgraded tanks. Additional features include a layer of rubber just above the side skirts of the tank and three Kontakt-1 ERA blocks scavenged from a T-72AV protecting the gun manlet. Also of interest is the placement of slat armour above the rear part of the tracks, which serves little to no purpose protecting the tank but is a nice touch nonetheless.
Despite having received a boost in its armour protection, the armour arrangement of this tank is less than ideal and difficult to produce and install due to the unique parts it is comprised of. Unsurprisingly, this armour arrangement would later be replaced by a more conventional layout. T-72 '311' is however a tribute to the craftsmanship of 'The Workshop', carefully overhauled with an almost redundant attention to detail.
Although '311' is likely to have seen combat after its second overhaul, little is known on its operations throughout late 2014 and early-to-mid 2015. The installing of multi-spectral camouflage hints at possible deployments to areas with heavy activity of coalition aircraft, but despite frequent postings of propaganda videos depicting Islamic State units on the offensive here, this tank was never featured in any of them.
Shortly after what would later prove to be the tank's last visit to 'The Workshop', '311' was deployed to Kweres in early August 2015 in preparation for the largest offensive that would be launched at the airbase since it was besieged in December 2012. The 'Tank Battalion' had already engaged the defenders of Kweres on several occasions, which successfully fought off several attacks launched by various rebel factions and the Islamic State since 2012. While the rebels proved incapable of seriously contesting the airbase, renewed efforts made by the Islamic State were meant to end Kweres' resilience once and for all.
The long-awaited offensive to capture Kweres would finally take place on the 9th of August 2015, and although almost completely unreported, would be one of the largest Islamic State offensives since the fall of Tabqa airbase on the 24th of August 2014. Several 'Platoons of Special Tasks' along with associated armour support would take part in the offensive, incuding Abu Hamza's T-72 '311', seen below behind one of the suicide bombers commencing the offensive of the 9th of August. The text bar below reads: الأخ الاستشهادي أبو عبدالله الشامي - ''Istishhadi brother Abu Abdullah al-Shami.''
Having successfully fought off several large attacks while under siege for just under three years at that time, the garrison defending Kweres was not going to give up without a fight however. Despite lacking any armour or artillery support and under heavy bombardment by the Islamic State, the defences of the airbase were optimised against any intruder that dared to cross the large swaths of open land separating Kweres airbase from Islamic State-held territory.
While going into detail on the defensive positions of Kweres is beyond the scope of this article, their strength mainly comes down to successful use of the airbase's Hardened Aircraft Shelters (HAS), many of which were turned into true fortresses. Trying to capture one would prove to be an extremely arduous task, and the fact that the Islamic State never managed to advance beyond the HAS' is a testimony to their strength.
Unfortunately for the Islamic State, these HAS' had to be overcome in order to capture the airbase. As the flat terrain surrounding the airbase would quickly see waves of Islamic State fighter being mowed down by the defenders, the 'Platoons of Special Tasks' made heavy use of armour to safely transport the infantry during the storming of the HAS'. A total of two mechanized assaults would be carried out during the August 2015 offensive, each remarkably similar in execution and outcome.
The first assault would occur on the 10th of August 2015, involving Abu Hamza's T-72 '311' and BMP-1 '208', whose objective was to advance to Kweres' Eastern-most HAS to drop off the fighters that would later storm the heavily fortified position. If this attack would have had any chance of succeeding, the defenders of the HAS' hiding in trenches would have had to be suppressed to allow the Islamic State fighters dismounting the BMP-1 to safely reach cover, from where they could make their way closer to the HAS.
It is at this exact moment that the inexperience of the crew operating in such an environment came to light, which would have drastic consequences for the attackers. Instead of positioning itself behind the BMP-1 that would allow for a wide field of view and the necessary gun elevation to suppress the defenders of the HAS, Abu Hamza's T-72 overtook the BMP-1 and positioned itself behind a berm from where it lacked the gun elevation to hit the defenders of the HAS', and the field of view to fire on other positions which were now blocked by the berm.
While it remains unknown if Abu Hamza's T-72 was also hit by the defenders, it appears he and his crew abandoned the tank in an attempt to escape the carnage unfolding around them. With nowhere to run to for safety, Abu Hamza was an easy target and was killed as well. Although failing in his objective to capture Kweres' Eastern-most HAS, his death would provide a wealth of knowledge and images after government soldiers managed to get access to his phone and shared the many images on it with journalists, leading to their exposure on the internet.
The image below clearly reveals the massacre that took place during the assault, with several bodies littered around the abandoned BMP-1. The penetration hole on the BMP-1 is clearly visible, which must have either disabled the vehicle or caused the crew to panick and flee. Also of interest is the additional layer of armour on the rear doors of the vehicle, which also happen to act as the BMP-1's fuel tanks.
This badly battered T-55A is one of the many Syrian T-55s to have been upgraded with a North Korean laser rangefinder (LRF) and wind-sensor during the late seventies and early eighties. This large upgrade programme saw hundreds of T-55A receive a North Korean designed LRF, wind-sensors and 14.5mm KPV heavy-machine guns. It is unlikely however that many factions operating these North Korean upgraded examples in the Syrian Civil War make use of these laser rangefinders, which would require training or past experience with the system to operate.
Additionally, and as is the case on many tanks similarly upgraded by 'The Workshop' the slat armour is likely to seriously impede the tank's situational awareness by obstructing its optics, a sacrifice the Islamic State appears to be more than willing to make. The only compromise in the slat armour was to enable the use of the coaxial 7.62mm PKT, for which a small cutout was made. Also of interest is the large container at the rear of the tank, likely used for storing equipment and to hold additional DIY armour which could come in handy considering the T-55's vulnerable rear.
Apparently taking no lessons from the failed attack involving Abu Hamza's T-72, this T-55 would participate in the second attack that would unfold itself in roughly the same way as the first. Instead of positioning itself in a behind the BMP-1 from where it could support the dismounted infantry, the T-55 literally ploughed itself into the berm, which was clearly up to the task of preventing any enemy vehicles from passing this obstacle. Having little space to manoeuvre after this catastrophic mistake, the T-55 appeared to have subsequently been hit but not penetrated. The crew of the BMP-1 is believed to have abandoned their still functioning vehicle immediately thereafter.
The 100mm D-10T cannon of the T-55 was penetrated by what is likely to have been an RPG, achieving a mission kill on the tank after which it appears to have been abandoned. The fact that the tank was otherwise still operational is proven by the fact that it appears to have moved and turned its turret on its own multiple times afterwards, with the damage to its main gun solely responsible for taking the entire vehicle out of combat.
Both the T-55A and BMP-1 would later be moved inside the perimeter of the airbase, allowing for closer inspection of both vehicles. The slat armour on the T-55's turret had already partially come off at this point, likely caused by regime forces themselves. Although BMP-1 '206' comes equipped with the attachments for additional armour on the rear doors of the vehicle, the armour was not present during the attack.
While the offensive aimed at capturing Kweres would continue for several more days, slowly winding down throughout the end of August, the Islamic State's goal of capturing Kweres had to be given up for the time being, and would later be completely abandoned after regime forces launched their own offensive with the aim of ending the siege of Kweres airbase. Now suddenly on the defence, these engagements were to see the involvement of many more upgraded Islamic State tanks.
The heavy fighting around the perimeter of Kweres airbase resulted in the loss of several upgraded BMP-1s, two of which ('206' and '208') would later enter service with government forces. Ironically, the defenders of the airbase previously lacked any kind of armour, and the abandoned BMP-1s on the defenders' doorstep must surely have been a welcome addition to their arsenal. While the slat-armoured T-55 was seemingly also captured intact, the damage it received to its cannon prevented further use by regime forces.
As the presence of the ERA left no place for the markings of 'The Workshop', a steel plate was attached to the front of the tank displaying جيش الخلافة - 'The Caliphate Army' followed by its serial number. This practise was abandoned later all together, likely because it was seen as a waste of time. Incidentally, it appears that '334' was the source of the explosive reactive armour found on the gun manlet of Abu Hamza's T-72 '311', which clearly did not save him in combat. The eventual fate and area of operations of this tank remains unknown.
Two identically upgraded T-72s would later be seen operating in Wilayat Homs, Wilayat Hama and Wilayat Halab throughout 2015, one of which also seen here while transported back to base after taking part in an offensive in Wilayat Hama. Although both of the T-72M1 variant instead of the T-72AV seen above, the impressive slat armour arrangement on these tanks is nearly identical, a rare sight in the Syrian Civil War. The image below reads: دك تجمعات الجيش النصيري بقذائف الدبابة في منطقة الدوة - ''Hitting positions of the Nusayri [Derogatory: Alawite] army with tank shells in the Duwa area.''
A significant number of vehicles would eventually receive this type of slat armour, the manufacturing process of which clearly became standardised with several sub-variants. Although the effectiveness of this armour arrangement will likely remain unknown, it is likely that it proved effective against shaped-charge projectiles such as RPGs and possibly ATGMs. Unfortunately for the Islamic State, these weapons would prove to be the least of their problems after the commencement of airstrikes by the Coalition.
A single T-62 Model 1967 and a T-55A upgraded with this armour can be seen in action in Wilayat Halab below. The text bar reads: دك تجمعات مرتدي pkk بقذائف الدبابة - ''Hitting gatherings of the PKK apostates with tank shells'' and ظك تجمعات الجيش النصيري وميليشياته في قرية رسم النفل شمال خناصر بقذائف الدبابة - ''Hitting the gatherings of the Nusayri army[Derogatory: Alawite] and militias in the village of Rasm Alnafl North of Khanasir with tank shells.''
A subvariant of this upgrade programme carried a different type of slat armour arrangement, which appears to be more similar to the armour placement seen on Abu Hamza's T-72 'Ural'. This particular tank is slated to receive multi-spectral camouflage around its turret, the supports for which are already present during this stage of construction. Although certainly looking impressive, the slat armour has been installed over the 'metal mattress' with only little spacing in between. Similarly, whether the metal mud guards in the front of the tracks are truly effective against projectiles is doubtful.

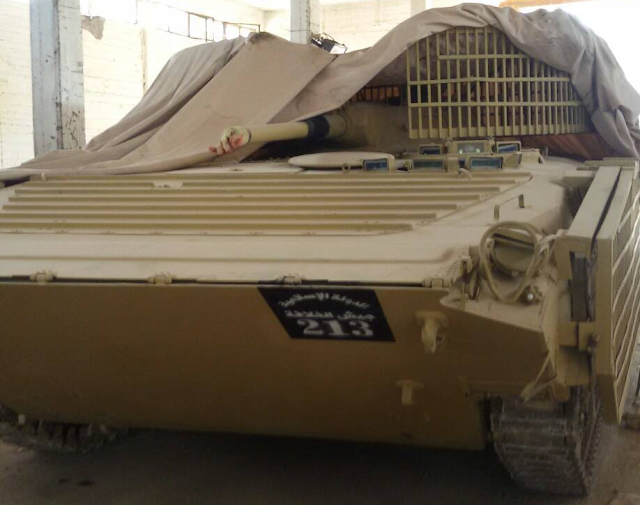

A look at BMP-1 '213' after completion of its overhaul, upgrade and repainting in 'The Workshop'. This image gives us a great look at the attachments of the additional armour panels on the sides of the vehicles. It is likely that the installation methods differed greatly between vehicles, as some armoured panels remained attached to the vehicle even after being hit, while others appear to have fallen off before the vehicle in question ever even saw combat.
The exact same example would later be seen in Deir ez-Zor, where it had been destroyed by regime forces while trying to advance closer to the city. It is likely that the vehicle suffered an ammunition explosion as the turret is detached from the hull of the vehicle. While the installation of slat armour on the sides and turret was obviously not sufficient to prevent this particular example from being destroyed, the same armour arrangement is known to have stopped RPGs fired against it on several occasions.
While the placement of explosive reactive armour on the hull of the BMP-1 would seem to be a simpler method of increasing the armour protection of the vehicle, the BMP's paper thin armour would actually make this method counterproductive as the explosion of Kontakt-1 ERA would shatter it upon being hit, further reinforcing fragmentation of the blast projected against the hull armour. Despite this effect, several factions in the Syrian Civil War have tried reinforcing the BMP-1's armour with explosive reactive armour on the hull, sometimes with disastrous results.
Left defenceless against fast jets and unmanned aerial vehicles (UAV) circling overhead, the Islamic State's only viable option was to decrease the chances of detection of its forces, leading to interesting adaptations on the battlefield. An example is the production on several types of camouflage uniforms with an aluminium lining to prevent looking infrared (FLIR) targeting pods from picking up the heat source of the soldier.
While these methods are relatively straightforward and easy to implement, the camouflaging of an object as large as a tank required a wholly different method, as clearly evidenced below and referenced earlier in this article. The suspended rope-like components that make up the camouflage are believed to be leather strips, and have a similar working as the camouflage uniforms mentioned above.
Unsurprisingly, nearly all of the tanks upgraded with multi-spectral camouflage would be deployed to Wilayat al-Barakah (al-Hasakah governorate), where the Islamic State was on the offensive against not only government forces but mainly the YPG. The latter could count on heavy Coalition air support, which would play a vital role in stopping the Islamic State's advance in this region. The T-55 seen below, with its camouflage nets still in travel position, is one of the examples to have been deployed to the al-Hasakah governorate, where it would later be seen in 'Lion of the Battlefield 2'. The markings on this vehicle have been applied in a crude manner, reading: جيش الخلافة - 'The Caliphate Army' '334'.
Similar to other Islamic State armour upgrades, the effectiveness of the multi-spectral camouflage at deceiving Coalition airpower remains largely unknown. However, as no tank upgraded with this type of camouflage has ever been featured being targeted in footage of Coalition airstrikes, or has been seen destroyed by a presumed airstrike on the ground in Syria, it could indeed have proved effective at deceiving Coalition aircraft and thus avoiding detection.

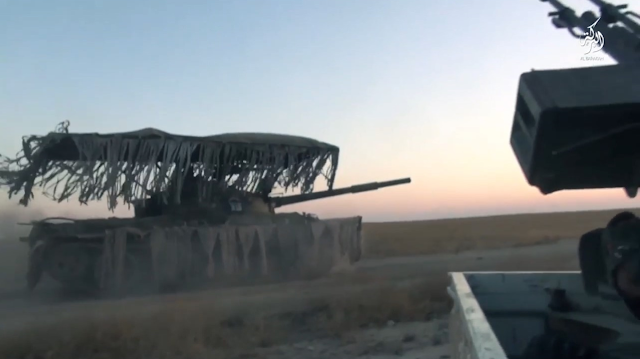

The limited footage that exists of the camouflaged tanks revealed that the construction and the strips themselves were highly susceptible to wear and tear, as is clearly evidenced on the T-62 below. This particular T-62 was featured in the propaganda video 'The Glory of Jihad', which covered the Islamic State's attempt at infiltrating and capturing the city of al-Hasakah. It is unlikely that the battered camouflage arrangement in the second image still contributed much to deceiving Coalition airpower.
The same tank after having been captured by the YPG in al-Hasakah, July 2015. T-62 '335' became trapped in the city after the YPG and regime forces surrounded the remaining Islamic State forces still left in the city, ultimately leading to the liberation of al-Hasakah on the 1st of August 2015. The wreck of T-62 '335' would be extensively documented, allowing for a better look at the construction previously holding the camouflage nets. The tank itself had already been disabled at this time, revealing extensive damage to its engine and rear of the turret.
Abu Hamza would also photograph several T-62s while undergoing installation of the multi-spectral camouflage in 'The Workshop'. The T-62 seen directly below would later become '335' before it was hit and abandoned in al-Hasakah (above). While the markings applied by 'The Workshop' allowed for easy tracking of Islamic State armour as they moved throughout Syria, the original Syrian Arab Army markings still left in place on several of the tanks could sometimes also provide valuable clues on the origins of the tanks.
This became especially imperative after the capture of Brigade 93 on the 7th of August 2014, which presented the Islamic State with at least thirty T-55s and more than a dozen artillery pieces, amounting to the largest heavy-arms haul of the Syrian Civil War. Arms hauls like this and others such as the capture of al-Qaryatayn in August 2015, providing the Islamic State with a further dozen T-62s and T-55s, would allow 'The Workshop' to continuously overhaul and upgrade a seemingly endless amount of armoured fighting vehicles.
The upgrading of AFVs with increased armour protection meanwhile continued at a comparably fast pace, with large numbers of vehicles receiving a wide variety of armour upgrades. The quality of many of these upgrades sharpy declined during this period, this in sharp contrast to some of the earlier works of 'The Workshop' seen above. The T-72 seen below is a perfect example of this, with the extensive slat armour arrangement previously seen now replaced by sandbags around the turret and a shoddy-looking slat armour arrangement on the side of the tank.
This particular tank was deployed to the area surrounding Kweres airbase, where Islamic State fighters were now engaged in holding the perimeter after the siege was lifted in November 2015. The first text bar reads: استهداف تجمعات الجيش النصيري بقذائف الدبابات غربي مطار كويرس - ''Targeting gatherings of Nusayri [Derogatory: Alawite] army west of Kweres airbase with tank shells'' while the second text bar reads: التصدي للطيران الروسي بالأسلحة الرشاشة غربي مطار كويرس - ''Fending off Russian airplanes with machine guns west of Kweres airbase.''.
The side skirts on this tank are of the same design as seen on some of the extensively modified AFVs above, albeit of a noticably worse quality. The horizontal bars have been unevenly welded on the frame, which further adds to the vehicle DIY (Do It Yourself) look. The thin strip of slat armour installed in between the turret and the slat armour on the sides looks especially fragile, and clearly hasn't been constructed properly.
Further examples mainly differed in the layour of their turret armour, which was different on almost every tank. The usual arrangement consisted of the aforementioned installation of metal bars for stowage of sandbags or various materials. This is also evident on the three tanks below, each bearing traces of an upgrade along the path of the extensive slat armour programmes seen earlier. The single armour block still present on the T-55 with a North Korean LRF is especially curious for its use of slat armour, which has again been applied directly over another layer of armour, reducing its chances of actually stopping a shaped charge hit.

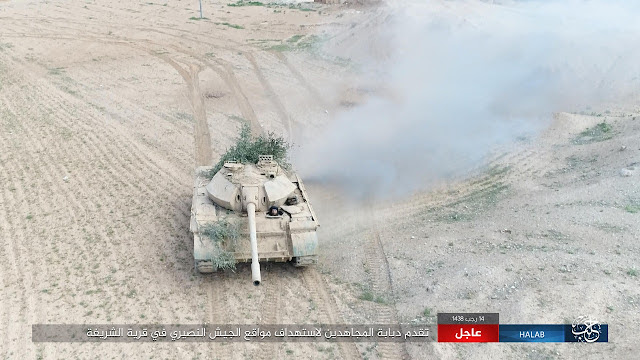

Large numbers of tanks upgraded by 'The Workshop' during 2015 would survive well into 2017, such as the T-55 operating in Wilayat Halab seen below. Much of the additional armour fittings on this tank appear to have fallen off, a logical result of months or sometimes years of fighting without being overhauled by 'The Workshop' again. Indeed, while earlier periods saw tanks returning to 'The Workshop' on several occasions, the gradual decrease in the Islamic State's tank park prevented this from happening at later stages during the war.
Apart from overhauling and upgrading various types of armoured fighting vehicles for future use on the battlefield, 'The Workshop' also began converting large numbers of AFVs to the role of vehicle-borne improvised explosive device (VBIED). In true Islamic State fashion, many offensives commence with the use of VBIEDs (which can be considered the Islamic State's morbid equivalent of an airstrike), usually consisting of a truck or an up-armoured 4x4. These suicide vehicles are not only effective in their destructive power, but even more so as a psychological weapon.
The Islamic State's efforts at producing VBIEDs did not remain limited to civilian vehicles however, and increasing numbers of AFVs were converted to this role since 2015. 'The Workshop' likely followed the example of Islamic State forces in Deir ez-Zor, where tanks and bulldozers were used as early as 2014 as a platform for VBIEDs in an effort to flush the remaining regime forces out of Deir ez-Zor's heavily fortified city centre, often to devastating effect. Two VBIEDs based on a BMP-1 and 2S1 were also employed in the Battle for Mennegh in 2013, where the Islamic State's use of VBIEDs proved decisive in the capture of the heliport.
Many of the VBIEDs produced by 'The Workshop' were based on the BMP-1, which provided the driver with increased protection and mobility over conventional vehicles. While one could argue that using precious BMP-1s for the role of VBIED would be a waste of resources, the BMP-1's paper thin armour and unimpressive armament makes it of limited use in today's conflict. While some unconverted BMP-1s have seen action in Wilayat Halab (Aleppo) and Wilayat al-Khayr (Deir ez-Zor), their absence has been noted on nearly every other front.
With morea than enough examples at hand, many BMP-1s would sacrificed for the conversion to VBIED, a process that quickly became standernised. This process would entail the removal of the turret and one of the rear doors, which was then welded and closed. The exact reasoning behind the removal of this rear door currently remains unknown however. Some vehicles would then receive additional armour consisting of rubber side skirts or slat armour, which likely depended on the time and resources available. A typical BMP-1 VBIED can be seen below. The example below came under heavy fire before ultimately reaching its target, and is featured (19:47) in the Islamic State propaganda video ''Between the Two States: Tribulations and Grants''. The text bar reads: انطلاق الأخ الاستشهادي أبو داوود التونسي-تقبله الله-نحو مواقع صحوات الردة في قرية عولان - ''Istishhadi brother Abu Dawud Al-Tunisi-May Allah accept him-heading towards positions of the apostate sahwat [Sunnis fighting the Islamic State] in the village of Awlan.''
Arguably the most dreadful instances of these BMP-1 VBIEDs being used occurred near al-Qaryatayn, located in between Damascus and Tadmur. This town was heavily contested between regime forces and the Islamic State, which originally took control over the town on the 5th of August 2015. A government offensive launched in March 2016 sought to regain control over al-Qaryatayn, but quickly ran into Islamic State forces defending the town, which deployed several VBIEDs during its defence.
In an attempt to disrupt the regime's offensive on the town, Islamic State forces stationed in al-Qaryatayn actually used its BMP-1 VBIEDs to frontally attack assaulting government forces in the wide open desert. Advancing under heavy covering fire, at least two examples were successfully used in this manner, causing the assaulting forces to flee. Both would feature (10:12) in the Islamic State propaganda video ''And If They Fight You, They Will Show You Their Backs'', which turns out to be a descriptive title for the scenes depicted in the footage
Despite the Islamic State's best efforts, al-Qaryatayn would eventually be recaptured in April 2016. The text bar in the images below showing an explosives-laden BMP-1 reads: الاستشهادي أبو جراح لهيبي الغائر على تجمع للنصيرية في محيط مدينة القريتين - ''Istishhadi Abu Jarrah Lahibi who raided a group of Nusayris (derogatory: Alawites) on the outskirts of the town of al-Qaryatayn.'' and (last) عربة الأخ الاستشهادي أبو جعفر الجولاني الغائر على أحد أرتال النصيرية في محيط مدينة القريتين - ''The vehicle of the Istishhadi brother Abu Jaffar al-Joulani who raided a column of Nusayris in the outskirts of the town of al-Qaryatayn.''
The up-armoured BMP-1 VBIED '225' below would be used against such a joint Free Syrian and Turkish Army position near al-Bab, which it managed to enter despite the presence of sand barriers erected precisely to prevent enemy vehicles from doing so. It later detonated its load after being blocked by a Turkish Army vehicle, which prevented '225' from inflicting greater damage. Footage of this VBIED attack can be seen in the Islamic State propaganda video ''Shield of the Cross'' (8:45) The text bar below reads: الأخ أبو عمر الهاشمي - تقبله الله - منفذ العملية الاستشهادية وسط تجمع للصحوات والجيش التركي المرتدين غرب مدينة الباب. - ''Brother Abu Omar Al-Hashimi, may Allah accept him, who carried out an Istishhadi operation amongst a group of Sahwat [Free Syrian Army] and apostates of the Turkish army west of the town of al-Bab.''

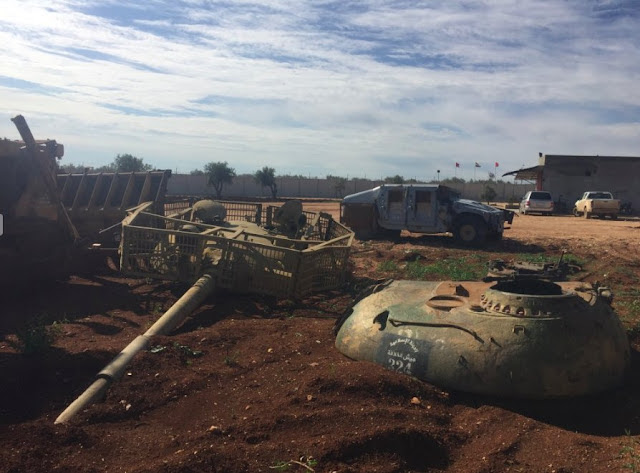

Although several tank-based VBIEDs with the markings of 'The Workshop' would also be used throughout Syria, it is believed that most of these VBIEDs were actually converted to the role of VBIED in the field, not by 'The Workshop'. An example is T-55 '363' operating in Wilayat al-Khayr (Deir ez-Zor) seen below, which had its turret removed in order to allow for a larger payload to be installed in the space left vacant. The tank's resulting low profile is also advantageous in avoiding incoming RPGs, increasing the chance the VBIED makes it to its target. The explosion of the vehicle can be seen here (at the 3:26 mark).
Another tank converted to this role was T-62 '347', which had previously been upgraded with the extensive slat armour arrangement covered earlier in this article. It appears that at some point during the tank's career its operators opted to use it as a VBIED instead, after which its turret was removed. The tank was subsequently deployed near Manbij, where it can be seen in Islamic State images below. The text bar reads: تقدم سرايا الانغماسيين على مواقع مرتدي الأكراد في الريف الجنوبي لمدينة منبج - ''The inghimasi platoons advancing on the positions of the apostate Kurds south of the town of Manbij.''
Likely still waiting for a target of opportunity, T-62 '347' would later be seen through the targeting pod of a Coalition aircraft before being blown to smithereens by an airstrike. The resulting explosion was so powerful that it not only completely destroyed the vehicle, but also disintegrated any evidence that a tank was ever there. Incidentally, the turret of '347' would later be found in an Islamic State field workshop in Northern Aleppo along with the turret of T-55 '324', which was likely also converted to a VBIED, and a captured M1114 belonging to the Abi Obaida bin Al-Jarrah Division.
Islamic State fighters surrounding Seen airbase had meanwhile attemped to use the world's first T-72-based VBIED, which however failed to detonate its payload and was captured by government forces defending the area surrounding the airbase. Despite having taken up positions so close to Seen airbase's runway its fighters could see aircraft take off, the Islamic State never managed to gain enough momentum to launch a serious offensive on this airbase. This particular T-72 had been donned with side skirts that would later become standard on nearly all T-72s upgraded by 'The Workshop'.
Interestingly, a single BTR-50 would also be used in the role of VBIED in Deir ez-Zor. Although a portion of the once significant fleet of BTR-50s might still survive in storage until this day, this vehicle has remained almost completely absent in the Syrian Civil War. This particular example is likely to have been found at one of the many Syrian Arab Army bases captured by the Islamic State throughout 2014, after which it was sent to 'The Workshop' for an overhaul and conversion to a VBIED.
The conversion of BMP-1s to the role of VBIED resulted in a steady flow of turrets of the BMP-1s that were removed from the vehicles prior to their deployment. These turrets appear to have been cannabilised during earlier conversions, but later some were adapted for emplacement on a range of civilian vehicles such as the infamous Toyota Land Cruiser. The turret and crew compartment are modular, meaning they can be installed on different types of vehicles.
The result is without a doubt one of the more slick designs coming out of the Syrian Civil War, and stands in sharp contrast to similar vehicles seen operating during the Libyan Civil War. One such vehicle can be seen below. The images read: استهداف نقطة للجيش النصيري وسط مدينة الخير بقذيفة صاروخية - ''Hitting a position of the Nusayri[Derogatory: Alawite] army in central al-Khayr city with shells.'' and استهداف عناصر الجيش النصيري بالأسلحة الثقيلة في محيط مدينة الخير - ''Hitting members of the Nusayri[Derogatory: Alawite] army on the outskirts of Al-Khayr cirt with heavy weapons.''
At least three of such heavily armed technicals are known to have been completed by 'The Workshop', which have mainly seen use in and around Deir ez-Zor. However, one example has also been sighted in action against the Turkish Army in Wilayat Halab, where curiously enough the vehicle's 73mm 2A28 cannon was used (20:59) in the role of artillery. These vehicles pack a serious punch for their size, and can even be armed with Malyutka anti-tank guided missiles.
No less than 98 of these missiles were captured by Islamic State forces after they captured the Ayyash weapon depot outside Deir ez-Zor, which provided the Islamic State with the largest arms haul of the Syrian Civil War. The images read: إطلاق صاروخ (مالوتكا) باتجاه ثكنة للجيش النصيري على جبل هرابش - ''Firing a Malyutka missile on barracks of the Nusayri[Derogatory: Alawite] army on Haramish hilltop.'' and استهداف تجمعات الجيش النصيري غرب مدينة الخير بالأسلحة الثقيلة - '' Hitting positions of the Nusayri[Derogatory: Alawite] army west of al-Khayr city with heavy weapons.''
In addition to deploying these vehicles in Syria, at least one of these modular turrets '231' ended up with the Islamic State in Iraq, where it was subsequently mounted on a U.S. Ford F-350 in Wilayat Ninawa. It was later seen participating in several offensives in this Wilayat, which also saw the rare use of tanks by the Islamic State in Iraq. This included the use of an up-armoured T-55 with a North Korean laser rangefinder supplied from Syria. The fact that these vehicles could operate in Iraq at all is a testament to the fact that the Islamic State managed to attain nearly unlimited freedom of movement in the territories it held despite the air forces aspiring to prevent precisely that.
Although 'The Workshop's' influence reached all the way to Iraq, the facility would come under direct threat at home for the first time in June 2016, the first serious setback for the until then still undetected facility. The Western flank of the Islamic State's heartland of Raqqa and Tabqa, also responsible for the protection of 'The Workshop', was only lightly defended owing to the flat terrain of the region, which left defensive positions vulnerable to both air and ground atttacks.
Although regime forces would successfully advance along the desert road closer to Tabqa, ultimately leading to the capture of 'The Workshop', the Islamic State made several efforts to slow their advance down to allow for the arrival of reinforcements that could stop and possibly reverse at least some of the advances previously made. Three BMP-1 VBIEDs were also destined to take part in one of these attempts, comprising BMP-1 '202', '212' and '222'.
Although all three would succeed in temporarily slowing the regime's advance down, this was purely due to the fact that its forces had to neutralise the VBIED threat first. The flat terrain, the abundance of tanks and the frontal assault employed made the task of detonating the VBIED close to regime forces nigh on impossible, and all three would be captured intact. BMP-1 '202' appeared to have taken a serious hit, as evidenced by the metal armour plate seen above.
While the Islamic State's subsequent counterattack dissuaded regime forces from making further efforts at advancing in this region for more than a year, the Islamic State was now heavily engaged with government forces advancing around Kweres airbase. Gradually losing territory around the city of Aleppo itself, and having lost the initiative to capture Kweres, the Islamic State quickly found itself on the defence throughout Wilayat Halab.
The large advances made by the SDF and Free Syrian Army supported by Turkey in the same region would also see regular appearances of Islamic State armour. Operating very little in terms of armour and anti-tank guided missiles (ATGMs), the Syrian Democratic Forces mostly relied on short range anti-tank weapons and Coalition airpower for the destruction of Islamic State vehicles and defensive positions.
The Free Syrian Army advancing on al-Bab could also rely on airpower in addition to Turkish Leopard 2s and M60T Sabras, several of which were captured and destroyed by the Islamic State. In return, Turkish Army tanks are believed to have been responsible for the destruction of at least two Islamic State tanks around al-Bab. Despite the deployment of thousands of tanks by different factions, tank to tank fighting remains an extremely rare occurrence during the Syrian Civil War.
The first product of this new upgrade programme had already been seen participating in the counteroffensive near Tabqa on the 21st of June 2016 as a part of the 'Platoons of Special Tasks' sent out to halt and reverse the government forces advances previously made. This slick design incorporates an armour belt filled with gravel or sand around its turret and sets of armour plates bolted onto the already existing sideskirts. The crew of this tank would later permanently add sandbags to the turret and glacis plate in the hopes of slightly increasing armour protection.
Although most Islamic State tanks ended up being deployed throughout the whole of the Islamic State-held territory in Syria, this tank could be exclusively seen operating against regime forces in Syria's desert environments, for which it received a well-matching sand dune paintjob. After its deployment to Tabqa, the exact same tank would later reappear in Wilayat Homs, where it could be seen operating in the Islamic State propaganda video 'The Clear Victory'. A slightly different variation of the tank displayed above would later be seen in Wilayat Dimashq, showing the upgrade was performed on more than one tank.
The last sighting of this tank occured in October 2016 just outside of Deir ez-Zor, where the tank featured in 'Support from God, and imminent victory (5)' along with two other up-armoured T-72s. The footage includes the arrival of this particular tank by a heavy-duty truck, confirming it had deployed to Wilayat al-Khayr specifically to take part in the offensive, after which it was likely redeployed again to another theatre of operations. The tank has not been sighted since, and has likely fallen victim to Coalition or Russian air power.
A prime example is this neatly upgraded T-72AV, the first of the upgraded tanks to receive an elaborate camouflage pattern, clearly reflecting the care invested in the upgrade as a whole (the misplaced tow hooks constituting an oversight that the author is willing to forgive). This is affirmed by the meticulously repaired mud guards which alongside details such as the holes cut in the tool boxes – to allow for filling them with additional materials for armour – attest to the precise approach undertaken by the Islamic State engineers working on the project. This is also apparent in the main feature of the upgrade; a belt of armour likely filled with gravel or sand closely fitted to the turret.
While the angle of the newly installed ERA on the armour belt and the presence of ERA on top of the turret but not on the glacis of the tank might seem strange, it is likely related to the increased threat of Coalition air power, which the crew hoped to counter by adding ERA tiles oriented towards the sky. Despite the highly serialised outlook of the tank, which one would sooner expect to see as the result of an indigenous project of an ex-Soviet republic, a closer look reveals the loss of some of the tank's functionality. Aside from blocked optics and missing IR searchlight, a notable example of this is the smoke grenade dischargers, which due to the placement of the newly installed armour belt would now strike the tank itself when fired. As Islamic State fighters are unlikely to make frequent use of such features anyway, the decision to forgo them is sensible.
The obviously high level of attention to detail expresses itself in cutouts made for the optics, the preservation and relocation of two smoke grenade dischargers next to the main gun dust cover and holes made in the tool boxes above the tracks for aforementioned reasons. Like its converted siblings, it features a belt of armour filled with gravel around the turret as well as reinforced sideskirts. The ERA placement on this armour once again differs however, with specific attention diverted to the front glacis plate, turret roof and only the upper side of the turret armour belt, as opposed to the generous rows of ERA on the previous two examples. All in all, the fancy camouflage, detailed upgrades and impressive armour modifications make this tank a truly unexpected sight amongst the battered vehicles usually encountered with the Islamic State.
In addition to these impressive looking designs, 'The Workshop' produced several additional subvariants, each boasting a different layout of explosive reactive armour around the turret. Although likely roughly equal in terms of protection, these tanks are arguably less impressive in their looks, and don't appear to have received the same share of attention as the slick designs showcased above. Interestingly, the example below appears to have received additional armour plating on its lower glacis plates to marginally increase its chances of survival when hit here.
Two similarly upgraded tanks would later show up after having been destroyed by Russian Air Force assets near Arak, Homs Governorate. Rapidly losing its remaining territory throughout Syria, the Islamic State committed large numbers of troops and AFVs in a desperate attempt to hold off regime forces advancing to the besieged city of Deir ez-Zor. Having no suitable anti-aircraft weaponry whatsoever, many tanks subsequently fell victim to Russian attack helicopters operating in the area.
The sad remains of both T-72s nonetheless give an interesting look into the contents of the armour belt wrapped around their turrets, which confirms the earlier notion that gravel or sand was used as a filler. The hit that destroyed the first T-72 appears to have knocked the ERA-rich armour belt loose from the turret, showing the sturdiness of engineering left something to be desired.
One of these tanks would suffer a catastrophic failure of its main gun in the Syrian desert, tearing much of the barrel apart and rendering it completely useless for future use. To no one's surprise, this tank was subsequently abandoned. While the cause of this failure is unknown, it is certain that many tanks still operating in the Syrian Civil War are badly worn out and likely in need of a replacement of their gun barrels, which are made to only fire a certain number of rounds before installation of a new one is required.

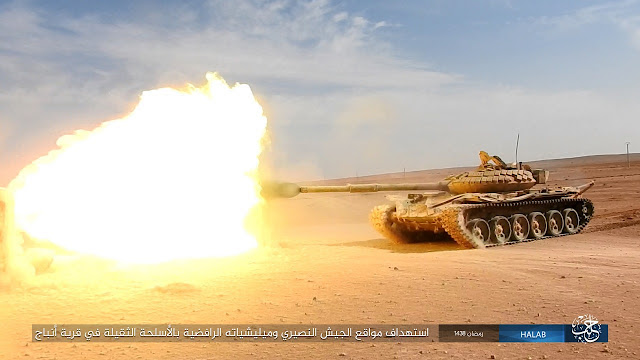

While the eventual fate of most of these upgraded tanks unfortunately remains unknown, the final resting place of one of them was clearly shown after it had deployed to Wilayat Halab initially in a bid to halt the advances made by government forces around Kweres airbase, as seen in the first image blow. The text bar reads: جانب من الهجوم على مواقع الجيش النصيري بين قريتي المفكر وعقارب الصافي - غنم دبابة نوع T-55 - ''Scene from the attack on the positions of the Nusayri [Derogatory: Alawite] army between the villages of Mufakkar and Aqarib Al-Safi. A T-55 tank was captured.'' It apparently redeployed to al-Bab some time later, and would later be destroyed by the Turkish Army around al-Bab.
While some noted similarity with the BDD appliqué armour on the turret front of several types of upgraded Soviet tanks such as the T-62M and T-55AM, this is actually a solid structure with no spacing in between like on the Soviet examples. The text bar reads: استهداف الجيش النصيري وميليشياته الرافضية بقذائف الدبابة في قرية الشريفة - ''Hitting the Nusayri[Derogatory: Alawite] army and its [allied] rafidiya[Derogatory: Shiite] militias in the village of al-Sharifa with tank shells.''
The other T-72 'Ural', outfitted with a more conventional ERA arrangement. This tank also clearly shows the metal frame holding sandbags on its upper glacis plate, which is an easy solution to reinforcing (albeit only very slightly) the armour of the front of the tank. The text bar reads: تقدم دبابة المجاهدين لدك معاقل الجيش النصيري وميليشياته الرافضية - ''A tank moving to pound positions of the Nusayri[Derogatory: Alawite] at the Juwaim intersection east of the village of Maslama.''
The final tanks upgraded by 'The Workshop' represented a hodgepodge of designs mirroring earlier armour upgrades in general layout but of lesser quality and presumably efficacy. On the examples seen below, the armour around the turret appears to consist of simple welded metal plates, again filled with sand or concrete. ERA was added to the turret roof and upper glacis plate whenever available, but often also omitted. Additionally, the same reinforcement of the side skirts seen on previously upgraded tanks is apparent, which in the case of the third image below evidently did not protect the tank as it was captured by regime forces after a hit from the side knocked out its engine.
On the T-72s below, the seal displayed on the turret armour reads: فرقة عثمان بن عفان ديوان الجند - البلقاء - 'Othman bin Affan Division - The Soldiers' Office - Al-Balqaa'. It is believed three or four tanks have been converted in this manner, before the last stage of designs 'The Workshop' would output appeared.
These last converted tanks retained the rough outline of the armour upgrades mentioned before, but executed far more poorly, featuring crudely shaped armour plating around the turret and often omitting the reinforced side skirts entirely. As the turret armour was now completely open from the top its contents and thickness can be readily identified: sand and gravel, as witnessed by the image below of an upgraded T-55 with North Korean LRF (also note the ammunition for the DShK lazily dumped into its box, preventing its proper use).
As the Islamic State's end in its current form is rapidly approaching, the wrecks of its once so impressive upgrades litter the battlefields in ever greater numbers. In one instance, the SDF would encounter a warehouse full of Islamic State armour near Tabqa, which had already been hit by Coalition aircraft. Likely used as a base by the 'Platoons of Special Tasks', it contained three T-62s, two T-55s and a turretless BMP-, some of which showing signs they had been overhauled at 'The Workshop'.
Although the tanks themselves were rarely used in a role where their (upgraded) armour could actually be used effectively, with many of the fanciest examples simply obliterated by enemy air power, 'The Workshop's' effect on the war cannot be underestimated. Aside from the scores of uparmoured tanks which demonstrated the ingenuity and resourcefulness of engineers working for the Islamic State, the hordes of VBIEDs for which it was also responsible may have changed the way warfare is conducted forever.
Through close to half a decade of gruelling warfare and continuous aerial bombardment this threat is now finally its way to being subdued, once again transforming the Islamic State from a state of terror capable of waging open conventional warfare to a terrorist group in hiding. Beyond the path of destruction and suffering it leaves in its wake, in time only the rusting husks of its bombed out armour creations will be left to attest it had ever existed, scarring the Middle Eastern landscape like it has scarred its population.
Special thanks to Abu Nuggie, Within Syria and Morant Mathieu.
